| الاسم التجاري: | CSJY |
| رقم الطراز: | MBS70LF-40A-1860-B1-V7 |
| الـ MOQ: | 2pcs |
| السعر: | Negotiate |
| تفاصيل التعبئة: | كرتون |
| شروط الدفع: | ر/ر |

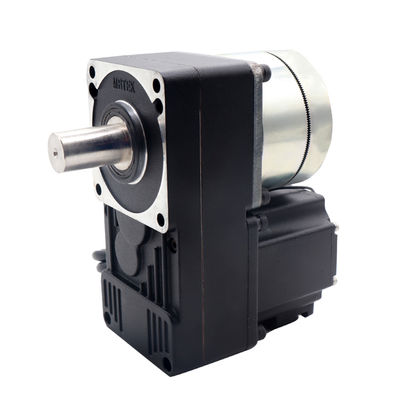

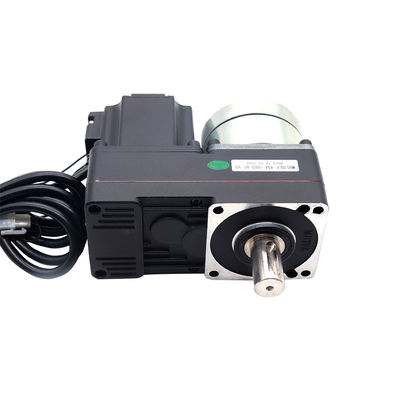

Introducing the DC24V 40W BLDC Servo Motor with 1:60 Gear Ratio and Integrated Clutch, a robust and intelligent drive solution engineered specifically for the safety and durability demands of modern swing gate systems. This advanced motor combines the superior performance of a 24V Brushless DC (BLDC) system with a high-torque 1:60 gear reduction and a critical safety clutch mechanism.

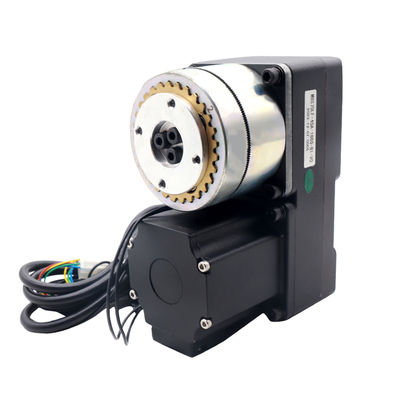

The core of this motor's design is its anti-collision protection. The built-in clutch automatically disengages the gear train upon encountering an obstruction, preventing damage to the gate, the motor itself, and, most importantly, ensuring user safety. Paired with a matching servo controller, this system offers precise control, smooth operation, and reliable performance for high-cycle automated access points.
| Rated voltage | DC24V |
| Rated power | 40W |
| Rated current | 3A |
| Rated speed | 1800rpm |
| Gear ratio | 1:60 |
| IP grade | IP54 |
| Output torque | 9.2Nm |
|
|
| الاسم التجاري: | CSJY |
| رقم الطراز: | MBS70LF-40A-1860-B1-V7 |
| الـ MOQ: | 2pcs |
| السعر: | Negotiate |
| تفاصيل التعبئة: | كرتون |
| شروط الدفع: | ر/ر |
Introducing the DC24V 40W BLDC Servo Motor with 1:60 Gear Ratio and Integrated Clutch, a robust and intelligent drive solution engineered specifically for the safety and durability demands of modern swing gate systems. This advanced motor combines the superior performance of a 24V Brushless DC (BLDC) system with a high-torque 1:60 gear reduction and a critical safety clutch mechanism.
The core of this motor's design is its anti-collision protection. The built-in clutch automatically disengages the gear train upon encountering an obstruction, preventing damage to the gate, the motor itself, and, most importantly, ensuring user safety. Paired with a matching servo controller, this system offers precise control, smooth operation, and reliable performance for high-cycle automated access points.
| Rated voltage | DC24V |
| Rated power | 40W |
| Rated current | 3A |
| Rated speed | 1800rpm |
| Gear ratio | 1:60 |
| IP grade | IP54 |
| Output torque | 9.2Nm |
